RXH Series

Add to favorites
Print

TECHNOLOGY

Wirewound - Aluminium Housing


MAIN CHARACTERISTIC

Power resistors

APPLICATIONS

  • Power and Energy

Datasheet RXH Series PDF - 769.05KB

Description

REACH logoRoHS Badge

Types
RXH40A to RXH30C
Historical Types
RXLG40 to RXLG3000
Resistance Range
0R1 up to 6K2
Rated Power
40W to 3000W
Features
Other Ohmic values available upon request, Heat and mechanical shock protected,
High Voltage, Aluminium house brake resistor, RoHs & REACH Compliant.

More datasheets:
Download icon 4 RXH60B-18C Datasheet
Download icon 4 RXH20C Datasheet
Download icon 4 RXH30C Datasheet

Download Ordering Code

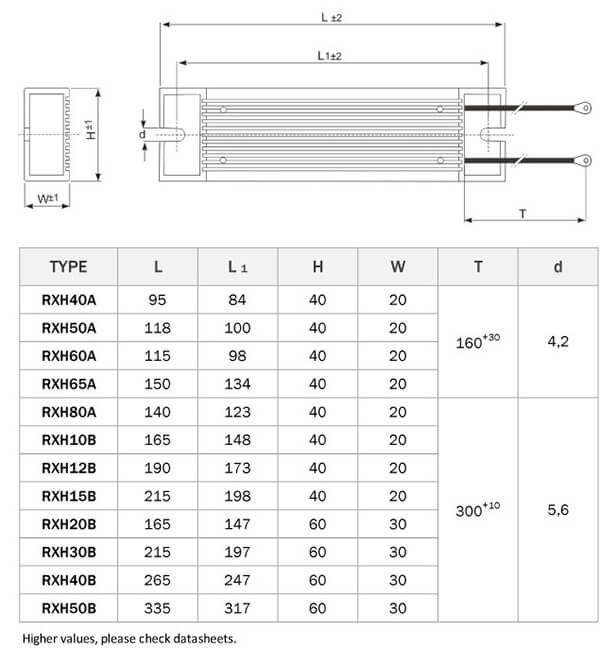

Technical Drawings

Dimensions [mm]

RXH wirewound high power resistor dimensions

Available Types

type Historical type SIZE RATED POWER (w) RESISTANCE RANGES TOL.(%) Mounting FEATURES Specsheet
From To
RXH40A RXLG40 95x40x20 40.0 0R5 200R 5%  10% Non PCB
RXH50A RXLG50 118x40x20 50.0 0R5 300R 5%  10% Non PCB
RXH60A RXLG60 115x40x20 6.0 0R5 430R 5%  10% Non PCB
RXH65A RXLG65 150x40x20 65.0 0R5 400R 5%  10% Non PCB
RXH80A RXLG80 140x40x20 80.0 0R5 910R 5%  10% Non PCB
RXH10B RXLG100 165x40x20 100.0 0R5 1K 5%  10% Non PCB
RXH12B RXLG120 190x40x20 120.0 0R5 1K2 5%  10% Non PCB
RXH15B RXLG150 215x40x20 150.0 0R5 1K5 5%  10% Non PCB
RXH20B RXLG200 165x60x30 200.0 0R5 2K4 5%  10% Non PCB
RXH30B RXLG300 215x60x30 300.0 0R5 2K7 5%  10% Non PCB
RXH40B RXLG400 265x60x30 400.0 0R5 3K9 5%  10% Non PCB
RXH50B RXLG500 335x60x30 500.0 0R5 6K2 5%  10% Non PCB
RXH60B RXLG600 355x61x59 600.0 0R1 150R 5%  10% Non PCB
RXH80B RXLG800 350x107x50 800.0 0R1 150R 5%  10% Non PCB
RXH10C RXLG1000 400x107x50 1000.0 0R1 150R 5%  10% Non PCB
RXH12C RXLG1200 450x107x50 1200.0 0R1 150R 5%  10% Non PCB
RXH15C RXLG1500 485x107x50 1500.0 0R1 150R 5%  10% Non PCB
RXH18C RXLG1800 500x107x50 18.0 0R1 150R 5%  10% Non PCB
RXH20C RXLG2000 397x365x182 2000.0 1R5 1R5 5% Non PCB
RXH30C RXLG3000 795x304x141,5 3000.0 1R5 1R5 5% Non PCB
