RWP Series

Add to favorites
Print

TECHNOLOGY

Film - Moulded


MAIN CHARACTERISTIC

General Purpose resistors

APPLICATIONS

  • Industrial
  • Consumer Electronics
  • Power and Energy

Datasheet RWP Series PDF - 653.71KB

Description

REACH logoRoHS Badge

Type
RWP502
Historical Type
RWP5020
Resistance Range
1R up to 1M
Rated Power
2,2W
Features
Suitable for automatic pick and place, All welded construction, Small package size,
Molded Epoxy encapsulation, RoHS & REACH Compliant.

Download Ordering Code

Technical Drawings

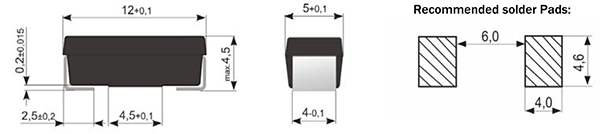

Dimensions [mm]

RWP smd film general purpose resistor dimensions

Available Types

type Historical type SIZE RATED POWER (w) RESISTANCE RANGES TOL.(%) Mounting FEATURES Specsheet
From To
RWP502 RWP5020 5020 (12x5x4,5) 2.2 1R 1M 1%  5% SMD
