CSU Series
TECHNOLOGY
Current Sensor - Open Frame
MAIN CHARACTERISTIC
Shunt resistorsAPPLICATIONS
- Automotive
- Industrial
- Power and Energy
Description
Type
CSU382
Resistance Range
0R0003 (L3) up to 0R002
Rated Power
6W to 10W
Features
Constant Current up to 100 amps (0.3mΩ), High Conductivity Copper Connectors,
Excellent Long-term Stability, Max. Solder Temperature up to 350ºC / 30s.,
AEC-Q200 qualified, RoHS and REACH Compliant.

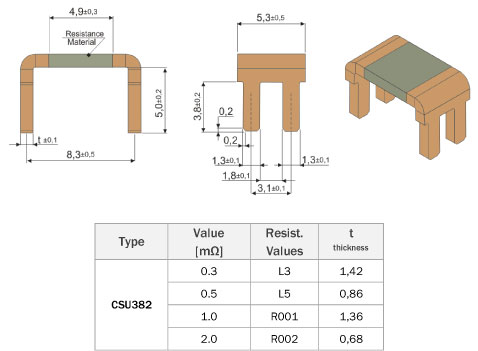

Technical Drawings
Dimensions [mm]
Available Types
| type | Historical type | SIZE | RATED POWER (w) | RESISTANCE RANGES | TOL.(%) | Mounting | FEATURES | Specsheet | |
|---|---|---|---|---|---|---|---|---|---|
| From | To | ||||||||
| CSU382 | 8,3x5,3 | 10.0 | 0R0003 | 0R0003 | 1% 3% 5% | Axial - TH | |||
| CSU382 | 8,3x5,3 | 9.0 | 0R0005 | 0R0005 | 1% 3% 5% | Axial - TH | |||
| CSU382 | 8,3x5,3 | 8.0 | 0R001 | 0R001 | 1% 3% 5% | Axial - TH | |||
| CSU382 | 8,3x5,3 | 6.0 | 0R002 | 0R002 | 0.5% 3% 5% | Axial - TH | |||
