RXS Series
TECHNOLOGY
Wirewound - Coated
MAIN CHARACTERISTIC
General Purpose resistorsAPPLICATIONS
- Industrial
- Consumer Electronics
- Power and Energy
- Computers and Peripherals
Description
Types
RXS-60 to RXS700
Historical Types
RX0207 to RX1026
Resistance Range
0R01 up to 6K8
Rated Power
0,6W to 7W
Features
Flame retardant coating, Non-inductive style available with
Aryton Perry winding (RNS Series), "Z" pre-forming,
Other preforming available, Non-inductive type available (RN-Series).

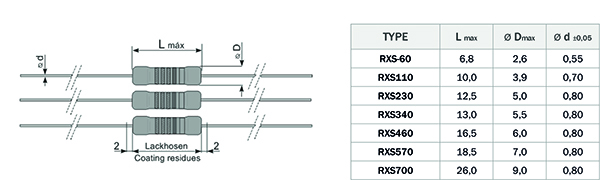

Technical Drawings
Dimensions [mm]
Alternative Lead Configurations
Available Types
type | Historical type | SIZE | RATED POWER (w) | RESISTANCE RANGES | TOL.(%) | Mounting | FEATURES | Specsheet | |
---|---|---|---|---|---|---|---|---|---|
From | To | ||||||||
RXS110 | RX0410 | 10x3,9x0,7 | 1.1 | 0R047 | 1K | 1% 5% | Axial - TH | Flame retardant, Non inductive | |
RXS230 | RX0512 | 12,5x5x0,8 | 2.3 | 0R1 | 2K2 | 1% 5% | Axial - TH | Flame retardant, Non inductive | |
RXS340 | RX0613 | 13x5,5x0,8 | 3.4 | 0R01 | 2K2 | 1% 5% | Axial - TH | Flame retardant, Non inductive | |
RXS460 | RX0716 | 16,5x6x0,8 | 4.6 | 0R1 | 2K2 | 1% 5% | Axial - TH | Flame retardant, Non inductive | |
RXS570 | RX0718 | 18,5x7x0,8 | 5.7 | 0R1 | 6K8 | 1% 5% | Axial - TH | Flame retardant, Non inductive | |
RXS700 | RX1026 | 26x9x0,8 | 7.0 | 0R33 | 6K8 | 1% 5% | Axial - TH | Flame retardant, Non inductive | |
RXS-60 | RX0207 | 6,8x2,6x0,55 | 0.6 | 0R1 | 100R | 1% 5% | Axial - TH | Flame retardant, Non inductive | |
RXS-60 SMD | RX0207 | 5315 (6,8x2,6x0,55) | 0.6 | 0R1 | 100R | 1% 5% | SMD | Flame retardant, Non inductive | |
RXS110 SMD | RZX2 | 6720 (10x3,9x0,7) | 1.1 | 0R047 | 1K | 1% 5% | SMD | Flame retardant, Non inductive | |
RXS230 SMD | RZX3 | 6720 (12,5x5x0,8) | 2.3 | 0R1 | 2K2 | 1% 5% | SMD | Flame retardant, Non inductive | |
RXS340 SMD | RZX4 | 6720 (13x5,5x0,8) | 3.4 | 0R01 | 2K2 | 1% 5% | SMD | Flame retardant, Non inductive | |
RXS460 SMD | RZX5 | 8424 (16,5x6x0,8) | 4.6 | 0R1 | 2K2 | 1% 5% | SMD | Flame retardant, Non inductive |
