RWF Series

Add to favorites
Print

TECHNOLOGY

Wirewound - Moulded


MAIN CHARACTERISTIC

Fusible resistors

APPLICATIONS

  • Industrial
  • Consumer Electronics
  • Power and Energy
  • Computers and Peripherals

Datasheet RWF Series PDF - 551.15KB

Description

REACH logoRoHS Badge

Type
RWF502
Historical Type
RWF5020
Resistance Range
0R1 up to 1K
Rated Power
2,2W
Features
Suitable for automatic pick and place, All welded construction,
Fusing resistor, best in class, Small package size, Molded encapsulation,
RoHs & REACH Compliant.

Download Ordering Code

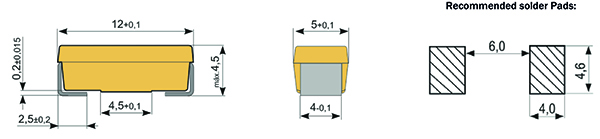

Technical Drawings

Dimensions [mm]

RWF smd wirewound fusible resistor dimensions

Available Types

type Historical type SIZE RATED POWER (w) RESISTANCE RANGES TOL.(%) Mounting FEATURES Specsheet
From To
RWF502 RWF5020 5020 (12x5x4,5) 2.2 0R1 1K 5%  10% SMD Fusible, Flame retardant
